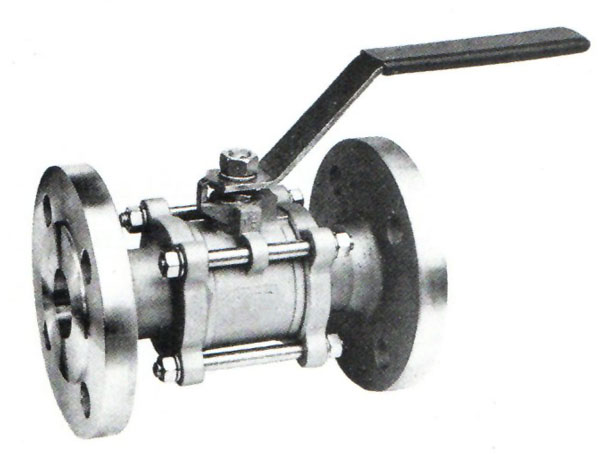

3-Piece Flanged End Full Port Ball Valve
3-Piece Flanged End Full Port Ball Valve
V-3F Type
Size: 1/2″ ∼ 4″
3-PIECE FLANGED END BALL VALVE ACC. TO ANSI-150LBS, DIN PN 16, PN 40
CARBON STEEL S-45C (Din 1.1191)
STAINLESS STEEL AISI 316 (Din 1.4408)

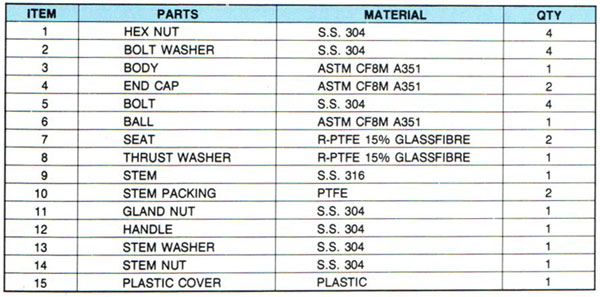

PARTS AND MATERIAL

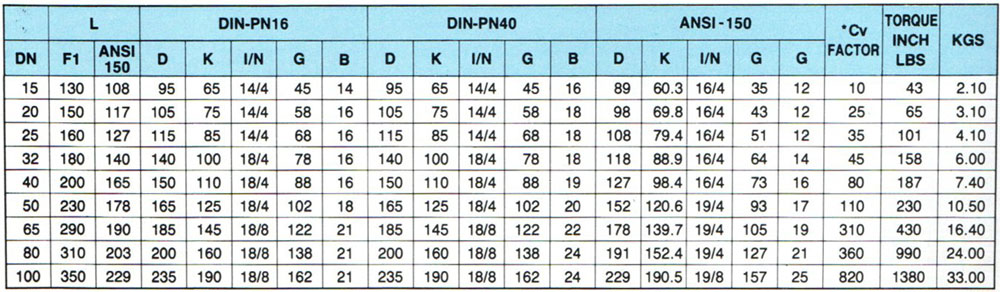

SPECIFICATIONS
