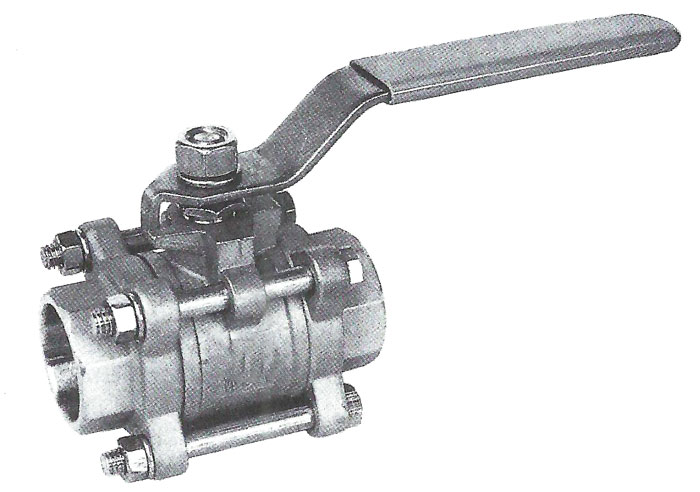

3-Piece Full Port Ball Valve
3-Piece Full Port Ball Valve
V-3S TYPE
SIZE: 1/4″ ∼ 4″
CARBON STEEL S-45C (Din 1.1191)
STAINLESS STEEL AISI 316 (Din 1.4408) 316 L (Din 1.4403)

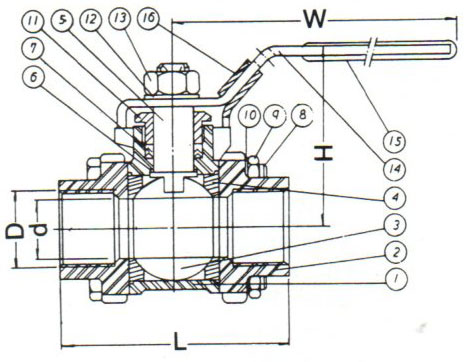

DIMENSIONS

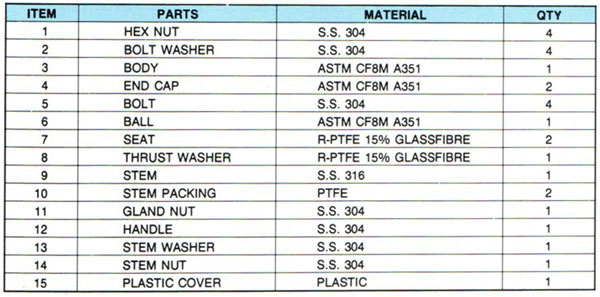

PARTS AND MATERIAL

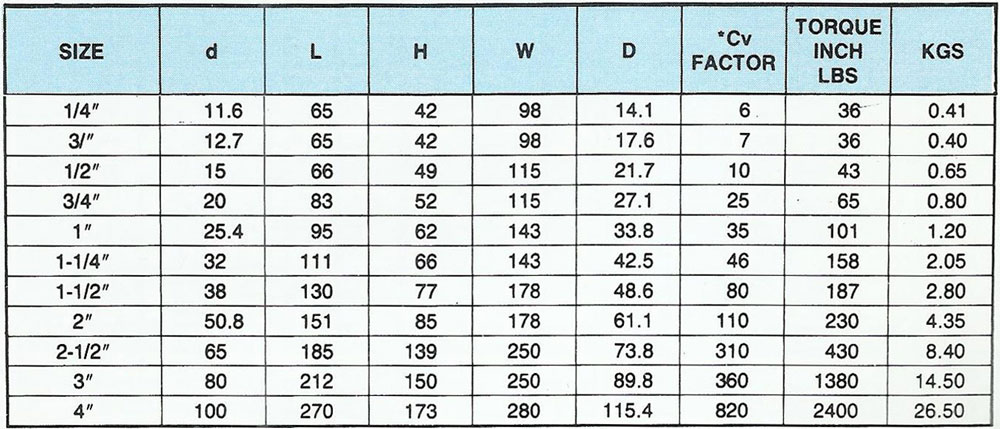

SPECIFICATIONS
