SINGLE PIECE DESIGN SCREWED END BALL VALVE
Size Range: 15 MM TO 100 MM
DESIGN
SINGLE PIECE DESIGN FLOATING BALL FULL PORT BALL VALVE SCREWED END HANDLE OPERATED
BODY
CARBON STEE / WCB / CF8 / CF8M
BALL
ASTM A 351 Gr. CF8 / CF8M
STEM
AISI 304 / 316
SEAT & SEALS
PTFE
PRESSURE RATING
150#
TEMPERATURE
UP TO 180°C
END CONNECTION
SCREWED END TO BSP / NPT (F)
HYD. TEST PRESS.
BODY 32 KG/CM² & SEAT 22 KG/CM²
SINGLE PIECE DESIGN FLANGE END BALL VALVE
Size Range: 15 MM TO 100 MM (SKY-SERIES BALL VALVE)
DESIGN
SINGLE PIECE DESIGN BLOW OUT PROOF STEM FLOATING BALL FULL / REDUCE PORT FLANGE END BALL VALVE 150#
BODY
WCB / CF8 / CF8M / CF3M
BALL
ASTM A 351 Gr. CF8 / CF8M / CF3M
STEM
AISI 304 / 316 / AISI 316L
SEAT & SEALS
PTFE Up to 180°C
CFT (Carbon Field Teflon) Up to 220°C
GFT (Glass Field Teflon) Up to 200°C
PRESSURE RATING
150#
LEAKAGE CLASS
VI ISO – 5208
DESIGN & MFG STD
BS 5351 / BS EN ISO 17292
INSP. & TEST STD
BS 6755 / BS EN 12266-I
END CONNECTION
FLANGE END TO ASME B 16.5 RF 150#
HYD. TEST PRESS.
BODY 32 KG/CM² & SEAT 22 KG/CM²

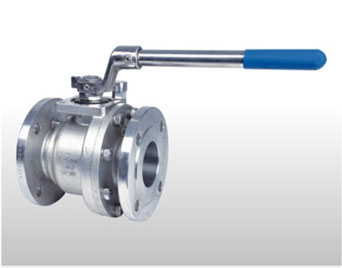

TWO PIECE DESIGN BALL VALVE
TWO PIECE DESIGN (OKT MODEL) BALL VALVE FLANGE END CLASS 150 & 300#
Size Range: 15 MM TO 300 MM (OKT MODEL)
DESIGN
TWO PIECE DESIGN BLOW OUT PROOF STEM FLOATING BALL FULL / REDUCE PORT FLANGE END BALL VALVE
BODY
WCB / CF8 / CF8M / CF3M
BALL
ASTM A 351 Gr. CF8 / CF8M / CF3M
STEM
AISI 304 / 316 / 316L
SEAT & SEALS
PEEK Up to 250°C
DESIGN & MFG.
ASME B 16.34 / BS EN ISO 17292
VALVE F TO F DIMENSION
ASME B 16.10
INSP. & TEST STD
API 598 / ISO – 5208 / BS EN 12266-I
PRESSURE RATING
150# / 300#
LEAKAGE CLASS
VI ISO – 5208
END CONNECTION
FLANGE END TO ASME B 16.5 RF 150# / 300#
OPERATION
HANDLE / GEAR OPERATED
HYD. TEST PRESS. 150#
BODY 32 KG/CM² & SEAT 22 KG/CM²
HYD. TEST PRESS. 300#
BODY 78 KG/CM² & SEAT 56 KG/CM²
TWO PIECE DESIGN BALL VALVE FLANGE END CLASS 600#
Size Range: 15 MM TO 150 MM
DESIGN
TWO PIECE DESIGN “CE APPROVED” BALL VALVE TRUNNION SOLID BALL WITH RPTFE SEAL FLANGE END 600#
BODY
WCB / CF8 / CF8M / CF3M
BALL
ASTM A 351 Gr. CF8 / CF8M / CF3M
STEM
AISI 304 / 316 / 316L
SEAT & SEALS
RPTFE Up to 200°C
OPERATION
HANDLE / GEAR OPERATED
PRESSURE RATING
600#
LEAKAGE CLASS
VI ISO – 5208
END CONNECTION
FLANGE END TO ASME B 16.5 RF 600#
HYD. TEST PRESS. 600#
BODY 155 KG/CM² & SEAT 115 KG/CM²
TWO PIECE DESIGN "VG SERIES" BALL VALVE FLANGE END CLASS 150 & 300#
Size Range: 15 MM TO 300 MM (VGO MODEL)
DESIGN
TWO PIECE DESIGN VG SERIES “CE APPROVED” FIRE SAFE DESIGN FLANGE END BALL VALVE
BODY
WCB / CF8 / CF8M / CF3M
BALL
ASTM A 351 Gr. CF8 / CF8M / CF3M
STEM
AISI 304 / 316 / 316L
SEAT & SEALS
PTFE Up to 180°C
CFT (Carbon Field Teflon) Up to 220°C
GFT (Glass Field Teflon) Up to 200°C
PEEK Up to 250°C
DESIGN & MFG.
ASME B 16.34 / BS EN ISO 17292
VALVE F TO F DIMENSION
ASME B 16.10
INSP. & TEST STD
API 598 / ISO – 5208 / BS EN 12266-I
PRESSURE RATING
150# / 300#
LEAKAGE CLASS
VI ISO – 5208
END CONNECTION
FLANGE END TO ASME B 16.5 RF 150# / 300#
OPERATION
HANDLE / GEAR OPERATED
HYD. TEST PRESS. 150#
BODY 32 KG/CM² & SEAT 22 KG/CM²
HYD. TEST PRESS. 300#
BODY 78 KG/CM² & SEAT 56 KG/CM²
TWO PIECE DESIGN "EXTENDED SHAFT" BALL VALVE FLANGE END CLASS 150 & 300#
Size Range: 15 MM TO 200 MM
DESIGN
TWO PIECE DESIGN “CE APPROVED” EXTENDED SHAFT BALL VALVE SCREWED / FLANGE END (EXTENDED 50 MM, 100 MM & 150 MM)
BODY
WCB / CF8 / CF8M / CF3M
BALL
ASTM A 351 Gr. CF8 / CF8M / CF3M
STEM
AISI 304 / 316 / 316L
SEAT & SEALS
PTFE Up to 180°C
CFT (Carbon Field Teflon) Up to 220°C
GFT (Glass Field Teflon) Up to 200°C
PEEK Up to 250°C
DESIGN & MFG.
ASME B 16.34 / BS EN ISO 17292
VALVE F TO F DIMENSION
ASME B 16.10
INSP. & TEST STD
API 598 / ISO – 5208 / BS EN 12266-I
PRESSURE RATING
150# / 300#
LEAKAGE CLASS
VI ISO – 5208
END CONNECTION
FLANGE END TO ASME B 16.5 RF 150# / 300#
OPERATION
HANDLE / GEAR OPERATED
HYD. TEST PRESS. 150#
BODY 32 KG/CM² & SEAT 22 KG/CM²
HYD. TEST PRESS. 300#
BODY 78 KG/CM² & SEAT 56 KG/CM²
*** WE ALSO PROVIDE BUTT WELD & SOCKET WELD
*** CUSTOMER SPECIFIED EXTENDED SHAFT BALL AVAILABLE ON REQUEST.
THREE PIECE DESIGN BALL VALVE
THREE PIECE DESIGN (OK SERIES) BALL VALVE SCREWED END CLASS 150
Size Range: 15 MM TO 100 MM
DESIGN
THREE PIECE DESIGN (OK SERIES) “CE APPROVED” BALL VALVE BLOW OUT PROOF STEM FLOATING BALL FULL PORT ASA 150# SCREWED END
BODY
WCB / CF8 / CF8M / CF3M
BALL
ASTM A 351 Gr. CF8 / CF8M / CF3M
STEM
AISI 304 / 316 / 316L
SEAT & SEALS
PTFE Up to 180°C
CFT (Carbon Field Teflon) Up to 220°C
GFT (Glass Field Teflon) Up to 200°C
PEEK Up to 250°C
PRESSURE RATING
150#
END CONNECTION
SCREWED END TO BSP / NPT
SOCKETWELD END TO ANSI B 16.11
BUTTWELD END TO ANSI B 16.25
OPERATION
HANDLE OPERATED
HYD. TEST PRESSURE
BODY 32 KG/CM² & SEAT 22 KG/CM²
THREE PIECE DESIGN FORGED BALL VALVE SCREWED END CLASS 800
Size Range: 15 MM TO 50 MM
DESIGN
THREE PIECE DESIGN FORGED BALL VALVE WITH SOLID BALL ASA 800#
REDUCE / FULL PORT SCREWED / SOCKETWELD END
BODY
ASTM A 105 / ASTM A 182 Gr. F304 / F 316 / F 316L
BALL
ASTM A 351 Gr. CF8 / CF8M / CF3M
STEM
AISI 304 / 316 / 316L
SEAT & SEALS
PTFE Up to 180°C
CFT (Carbon Field Teflon) Up to 220°C
GFT (Glass Field Teflon) Up to 200°C
OPERATION
HANDLE / GEAR OPERATED
PRESSURE RATING
800#
END CONNECTION
SCREWED END TO BSP / NPT
SOCKETWELD END TO ANSI B 16.11
OPERATION
HANDLE OPERATED
THREE PIECE DESIGN (OK SERIES) BALL VALVE FLANGE END CLASS 150 & 300
Size Range: 15 MM TO 300 MM (OK SERIES)
DESIGN
THREE PIECE DESIGN “CE APPROVED” BALL VALVE BLOW OUT PROOF STEM FLOATING BALL FULL / REDUCE PORT FLANGE END
BODY
WCB / CF8 / CF8M / CF3M
BALL
ASTM A 351 Gr. CF8 / CF8M / CF3M
STEM
AISI 304 / 316 / 316L
SEAT & SEALS
PTFE Up to 180°C
CFT (Carbon Field Teflon) Up to 220°CGFT (Glass Field Teflon) Up to 200°CPEEK Up to 250°C
DESIGN & MFG.
ASME B 16.34 / BS EN ISO 17292
VALVE F TO F DIMENSION
ASME B 16.10
INSP. & TEST STD
API 598 / ISO – 5208 / BS EN 12266-I
PRESSURE RATING
150# / 300#
LEAKAGE CLASS
VI ISO – 5208
END CONNECTION
FLANGE END TO ASME B 16.5 RF 150# / 300# / BS 10 TABLE “E”, “F”, “H”, “D” AVAILABLE ON REQUEST
OPERATION
HANDLE / GEAR OPERATED
HYD. TEST PRESS. 150#
BODY 32 KG/CM² & SEAT 22 KG/CM²
HYD. TEST PRESS. 300#
BODY 78 KG/CM² & SEAT 56 KG/CM²
*** V PORT BALL VALVE AVAILABLE ON REQUEST
*** CAVITY FILLED BALL VALVE AVAILABLE ON REQUEST.
THREE PIECE DESIGN "TRICLOVER END" BALL VALVE
Size Range: 15 MM TO 100 MM
DESIGN
HANDLE OPERATED THREE PIECE DESIGN “CE APPROVED” BALL VALVE SOLID BALL WITH PTFE SEALS TRICLOVER END (TC END)
BODY
ASTM A 351 Gr. CF8M / CF3M
BALL
ASTM A 351 Gr. CF8M / CF3M
STEM
AISI 316 / 316L
SEAT & SEALS
PTFE Up to 180°C
CFT (Carbon Field Teflon) Up to 220°C
GFT (Glass Field Teflon) Up to 200°C
PRESSURE RATING
UP TO 7 KG/CM²
LEAKAGE CLASS
VI ISO – 5208
END CONNECTION
TRICLOVER END
THREE PIECE DESIGN "BUTTWELD END" BALL VALVE
Size Range: 15 MM TO 100 MM
DESIGN
HANDLE OPERATED THREE PIECE DESIGN “CE APPROVED” BALL VALVE BUTTWELD END
BODY
WCB / CF8 / CF8M / CF3M
BALL
ASTM A 351 Gr. CF8 / CF8M / CF3M
STEM
AISI 304 / 316 / 316L
SEAT & SEALS
PTFE Up to 180°C
CFT (Carbon Field Teflon) Up to 220°C
GFT (Glass Field Teflon) Up to 200°C
PEEK Up to 250°C
PRESSURE RATING
150#
LEAKAGE CLASS
VI ISO – 5208
END CONNECTION
BUTTWELD END TO ANSI B 16.25

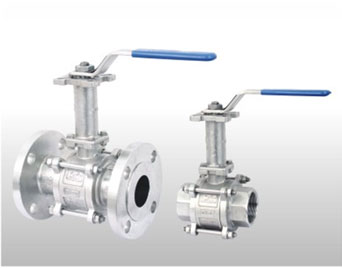

THREE PIECE DESIGN " EXTENDED SHAFT" BALL VALVE
Size Range: 15 MM TO 100 MM
DESIGN
THREE PIECE DESIGN “CE APPROVED” EXTENDED SHAFT BALL VALVE SCREWED / FLANGE END (EXTENDED 100 MM & 150 MM)
BODY
WCB / CF8 / CF8M / CF3M
BALL
ASTM A 351 Gr. CF8 / CF8M / CF3M
STEM
AISI 304 / 316 / 316L
SEAT & SEALS
PTFE Up to 180°C
CFT (Carbon Field Teflon) Up to 220°C
GFT (Glass Field Teflon) Up to 200°C
PEEK Up to 250°C
DESIGN & MFG.
ASME B 16.34 / BS EN ISO 17292
VALVE F TO F DIMENSION
ASME B 16.10
INSP. & TEST STD
API 598 / ISO – 5208 / BS EN 12266-I
PRESSURE RATING
150#
LEAKAGE CLASS
VI ISO – 5208
END CONNECTION
SCREWED END TO BSP / NPT (F) FLANGE END TO ASME B 16.5 RF 150# / 300# / BS 10 TABLE “E”, “F”, “H”, “D” AVAILABLE ON REQUEST
OPERATION
HANDLE / GEAR OPERATED
HYD. TEST PRESS. 150#
BODY 32 KG/CM² & SEAT 22 KG/CM²
*** WE ALSO PROVIDE BUTT WELD & SOCKET WELD
*** CUSTOMER SPECIFIED EXTENDED SHAFT BALL VALVE AVAILABLE ON REQUEST.
