Jacketed Ball Valve

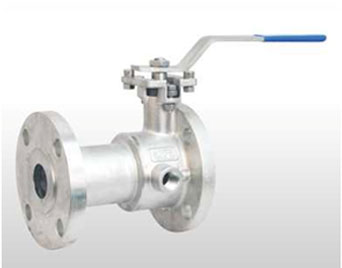

JACKETED BALL VALVE
SINGLE PIECE DESIGN REPLACEABLE SEALS DESIGN FLANGE END
Size Range: 15 MM TO 200 MM
DESIGN
HAND LEVER & GEAR OPERATED 2 WAY JACKETED BALL VALVE SINGLE PIECE DESIGN “CE APPROVED” SOLID BALL WITH RPTFE SEALS REPLACEABLE SEALS DESIGN FLANGE END 150#
BODY
WCB / CF8 / CF8M / CF3M
BALL
ASTM A 351 Gr. CF8 / CF8M / CF3M
STEM
AISI 304 / 316 / AISI 316L
SEAT & SEALS
RPTFE
PRESSURE RATING
10 KG/CM²
TEMPERATURE
UP TO 200°C
LEAKAGE CLASS
VI
END CONNECTION
FLANGE END TO ASME B 16.5 150#
OPERATION
HANDLE / GEAR OPERATED
TWO PIECE DESIGN REPLACEABLE SEALS DESIGN FLANGE END
Size Range: 250 MM TO 300 MM
DESIGN
GEAR OPERATED 2 WAY JACKETED BALL VALVE TWO PIECE DESIGN FLANGE END 150#
BODY
WCB / CF8 / CF8M / CF3M
BALL
ASTM A 351 Gr. CF8 / CF8M / CF3M
STEM
AISI 304 / 316 / AISI 316L
SEAT & SEALS
RPTFE
PRESSURE RATING
10 KG/CM²
TEMPERATURE
UP TO 200°C
LEAKAGE CLASS
VI
END CONNECTION
FLANGE END TO ASME B 16.5 150#
OPERATION
HANDLE / GEAR OPERATED
*** 300# FLANGE AVAILABLE ON REQUEST BUT PRESSURE UPTO 10 KG/CM²
WAFER TYPE
Size Range: 25 MM TO 100 MM
DESIGN
HANDLEVER OPERATED 2 WAY “CE APPROVED” WAFER TYPE JACKETED BALL VALVE SOLID BALL WITH PTFE SEALS 150#
BODY
CF8M / CF3M
BALL
ASTM A 351 Gr. CF8M / CF3M
STEM
AISI 316 / 316L
SEAT & SEALS
PTFE Up to 180°C
CFT (Carbon Field Teflon) Up to 220°C
GFT (Glass Field Teflon) Up to 200°C
VALVE F TO F DIMEN.
AS PER MANUFACTURER STD.
PRESSURE RATING
10 KG/CM²
LEAKAGE CLASS
VI ISO – 5208
FLANGE STD. CONFORMITY
ASME B 16.5 CLASS 150
HYD. TEST PRESS. 150#
BODY 32 KG/CM² & SEAT 22 KG/CM²
