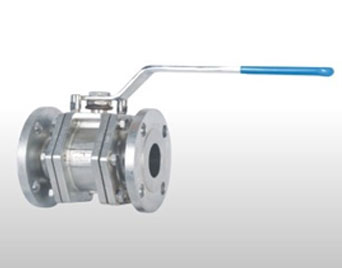

Metal Seated Ball Valve
METAL SEATED BALL VALVE
Size Range: 15 MM TO 100 MM
DESIGN
THREE PIECE DESIGN “CE APPROVED” METAL SEATED BALL VALVE SCREWED / FLANGE END
BODY
WCB / CF8 / CF8M / CF3M
BALL
ASTM A 351 Gr. CF8 / CF8M / CF3M
STEM
AISI 304 / 316 / 316L
SEALS
METAL TO METAL
PRESSURE RATING
UP TO 10 KG/CM²
LEAKAGE CLASS
IV TO V
TEMPERATURE
-50°C TO 420°C
(600°C Temp. Available on request)
END CONNECTION
SCREWED END TO BSP / NPT
SOCKETWELD END TO ANSI B 16.11
FLANGE END TO ASME B 16.5 RF 150#
OPERATION
HANDLE OPERATED
HYD. TEST PRESS.
BODY 15 KG/CM² & SEAT 10 KG/CM²
