Multi Port Ball Valve
CW-SERIES 3 WAY BALL VALVE C WAY DESIGN
CW-SERIES 3 WAY BALL VALVE SCREWED END
Size Range: 15 MM TO 80 MM (C WAY BALL VALVE)
DESIGN
HANDLEVER OPERATED 3 WAY CW SERIES “CE APPROVED” (‘C WAY’) “L” PORT TWO PIECE DESIGN BALL VALVE SCREWED END
BODY
WCB / CF8 / CF8M / CF3M
BALL
ASTM A 351 Gr. CF8 / CF8M / CF3M
STEM
AISI 304 / 316 / 316L
SEAT & SEALS
PTFE Up to 180°C
CFT (Carbon Field Teflon) Up to 220°C
GFT (Glass Field Teflon) Up to 200°C
PEEK Up to 250°C
PRESSURE RATING
PN-10
LEAKAGE CLASS
VI ISO – 5208
END CONNECTION
SCREWED END TO BSP / NPT (F)
SOCKETWELD END TO ANSI B 16.11
HYD. TEST PRESS. 150#
BODY 15 KG/CM² & SEAT 10 KG/CM²
*** CAVITY FILLED BALL VALVE AVAILABLE ON REQUEST.

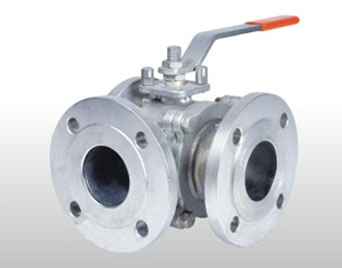

CW-SERIES 3 WAY BALL VALVE FLANGE END
Size Range: 15 MM TO 80 MM (C WAY BALL VALVE)
DESIGN
HANDLEVER & GEAR OPERATED 3 WAY CW SERIES “CE APPROVED” (‘C WAY’) “L” PORT BALL VALVE FLANGE END
BODY
WCB / CF8 / CF8M / CF3M
BALL
ASTM A 351 Gr. CF8 / CF8M / CF3M
STEM
AISI 304 / 316 / 316L
SEAT & SEALS
PTFE Up to 180°C
CFT (Carbon Field Teflon) Up to 220°C
GFT (Glass Field Teflon) Up to 200°C
PEEK Up to 250°C
PRESSURE RATING
PN-10
LEAKAGE CLASS
VI ISO – 5208
END CONNECTION
FLANGE END TO ASME B 16.5 RF 150#
HYD. TEST PRESS. 150#
BODY 15 KG/CM² & SEAT 10 KG/CM²
*** CAVITY FILLED BALL VALVE AVAILABLE ON REQUEST.
3 WAY THREE PIECE DESIGN “L” / “T” PORT BALL VALVE
Size Range: 15 MM TO 80 MM
DESIGN
HANDLEVER OPERATED 3 WAY THREE PIECE DESIGN “L” / “T” PORT BALL VALVE SCREWED END
BODY
ASTM A 351 Gr. CF8
BALL
ASTM A 351 Gr. CF8
STEM
AISI 304
SEAT & SEALS
PTFE Up to 180°C
PRESSURE RATING
PN-10
LEAKAGE CLASS
VI ISO – 5208
END CONNECTION
SCREWED END TO BSP / NPT (F)
SOCKETWELD END TO ANSI B 16.11
HYD. TEST PRESS. 150#
BODY 15 KG/CM² & SEAT 10 KG/CM²

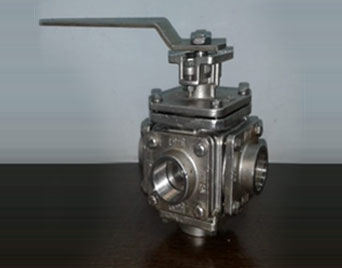

SUZ-SERIES 3 WAY / 4 WAY / 5 WAY BALL VALVE
SCREWED END
Size Range: 15 MM TO 100 MM (SUZ-SERIES)
DESIGN
HANDLEVER OPERATED 3 WAY / 4 WAY “CE APPROVED” “L” / “T” PORT FLOATING BALL VALVE SCREWED END
BODY
WCB / CF8 / CF8M / CF3M
BALL
ASTM A 351 Gr. CF8 / CF8M / CF3M
STEM
AISI 304 / 316 / 316L
SEAT & SEALS
PTFE Up to 180°C
CFT (Carbon Field Teflon) Up to 220°C
GFT (Glass Field Teflon) Up to 200°C
PEEK Up to 250°C
PRESSURE RATING
150# / 300#
LEAKAGE CLASS
VI ISO – 5208
END CONNECTION
SCREWED END TO BSP / NPT (F)
SOCKETWELD END TO ANSI B 16.11
TRICLOVER END
*** X PORT BALL VALVE ONLY 4 WAY BALL VALVE.
*** CAVITY FILLED BALL VALVE AVAILABLE ON REQUEST.
*** JACKETED 3 WAY BALL VALVE AVAILABLE ON REQUEST.

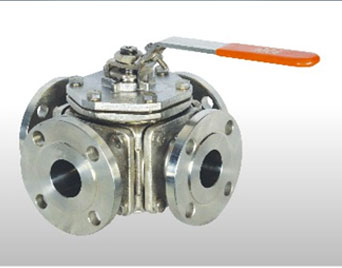

FLANGE END
Size Range: 15 MM TO 150 MM (SUZ-SERIES)
DESIGN
HANDLEVER & GEAR OPERATED 3 WAY / 4 WAY “CE APPROVED” “L” / “T” PORT FULL / REDUCE BORE FLOATING BALL VALVE FLANGE END
BODY
WCB / CF8 / CF8M / CF3M
BALL
ASTM A 351 Gr. CF8 / CF8M / CF3M
STEM
AISI 304 / 316 / 316L
SEAT & SEALS
PTFE Up to 180°C
CFT (Carbon Field Teflon) Up to 220°C
GFT (Glass Field Teflon) Up to 200°C
PEEK Up to 250°C
PRESSURE RATING
ASA 150# / 300#
LEAKAGE CLASS
VI ISO – 5208
END CONNECTION
FLANGE END TO ASME B 16.5 RF 150#
FLANGE END TO ASME B 16.5 RF 300#
*** X PORT BALL VALVE ONLY 4 WAY BALL VALVE.
*** CAVITY FILLED BALL VALVE AVAILABLE ON REQUEST.
*** JACKETED 3 WAY BALL VALVE AVAILABLE ON REQUEST.

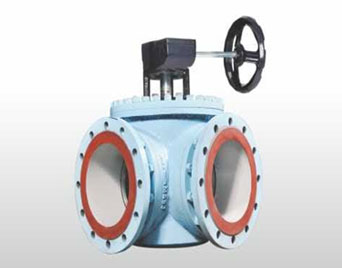

TRUNNION MOUNT 3 WAY / 4 WAY / 5 WAY BALL VALVE
Size Range: 125 MM TO 300 MM (TRUNNION BALL VALVE)
DESIGN
HANDLEVER & GEAR OPERATED 3 WAY / 4 WAY “CE APPROVED” “L” / “T” PORT FULL / REDUCE BORE TRUNNION BALL VALVE FLANGE END
BODY
WCB / CF8 / CF8M / CF3M
BALL
ASTM A 351 Gr. CF8 / CF8M / CF3M
STEM
AISI 304 / 316 / 316L
SEAT & SEALS
PTFE Up to 180°C
CFT (Carbon Field Teflon) Up to 220°C
GFT (Glass Field Teflon) Up to 200°C
PEEK Up to 250°C
DESIGN AND MFG STD.
ASME B 16.34 / API 6D
VALVE F TO F DIMENSION
AS PER MANUFACTURER STD
INSP. & TEST STD.
API 598 / ISO 5208 / BS EN 12266-I
PRESSURE RATING
ASA 150# / 300#
LEAKAGE CLASS
VI ISO – 5208
END CONNECTION
FLANGE END TO ASME B 16.5 RF 150#
FLANGE END TO ASME B 16.5 RF 300#
*** X PORT BALL VALVE ONLY 4 WAY BALL VALVE.
