Pharmaceautical Butterfly Valve

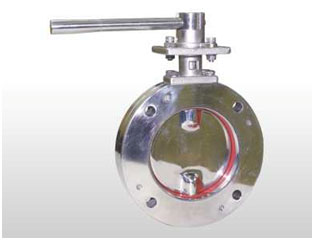

Wafer Type Butterfly Valve for "PHARMACEUTICAL APPLICATION”
Size Range: 2½” to 16” (65 MM to 400 MM)
Standard
Butterfly Valve Specification
Design
Wafer Type Centric Disc Design Pharma Butterfly Valve (Mirror Finish)
Body
CF8 / CF8M
Disc
CF8 / CF8M
Seat
Silicon
Bracket
S.S.
Seat Leakage
Class IV to V
Temperature
Upto 150°C
Working Pressure
3 to 4 Kg/Cm² Max.
Operation
Hand Lever / Worm Gear Operated
"TC End” Butterfly Valve "PHARMACEUTICAL APPLICATION”
Size Range: 1” to 12” (25 MM to 300 MM)
Standard
Butterfly Valve Specification
Design
“TC End Pharma Butterfly Valve (Mirror Finish)
Body
CF8 / CF8M
Disc
CF8 / CF8M
Seat
Silicon
Bracket
S.S.
Seat Leakage
Class IV to V
Temperature
Upto 150°C
Working Pressure
3 to 4 Kg/Cm² Max.
Operation
Hand Lever / Worm Gear Operated
