Trunnion Mounted
FLOATING BALL VALVE

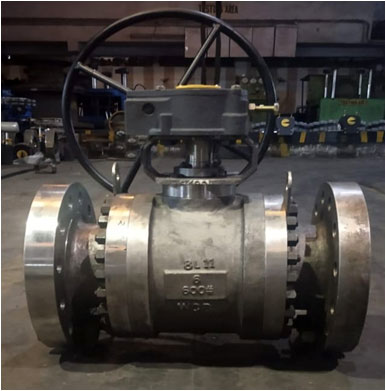

THREE PIECE DESIGN TRUNNION MOUNTED API 6D BALL VALVE
Size Range: 15 MM TO 600 MM
DESIGN
THREE PIECE DESIGN “CE APPROVED” INCONEL SPRING LOADED BALL VALVE FLANGE END GEAR OPERATED
BODY
WCB / CF8 / CF8M / CF3M
BALL
ASTM A 351 Gr. CF8 / CF8M / CF3M
STEM
AISI 304 / 316 / 316L
SEAT & SEALS
PTFE / CFT / GFT / DEVLON / PEEK
DESIGN & MFG. STD
API 6D
VALVE F TO F DIMENSION
API 6D
INSP. & TEST STD
API 6D
PRESSURE RATING
150# / 300# / 600#
LEAKAGE CLASS
VI
END CONNECTION
FLANGE END TO ASME B 16.5 RF 150# / 300# / 600#

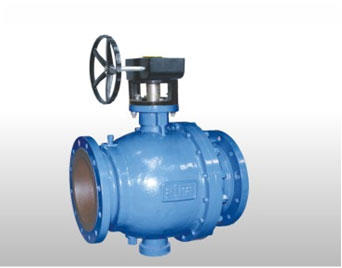

TWO PIECE DESIGN TRUNNION MOUNTED API 6D BALL VALVE
Size Range: 15 MM TO 600 MM
DESIGN
THREE PIECE DESIGN “CE APPROVED” INCONEL SPRING LOADED BALL VALVE FLANGE END GEAR OPERATED
BODY
WCB / CF8 / CF8M / CF3M
BALL
ASTM A 351 Gr. CF8 / CF8M / CF3M
STEM
AISI 304 / 316 / 316L
SEAT & SEALS
PTFE / CFT / GFT / DEVLON / PEEK
DESIGN & MFG. STD
API 6D
VALVE F TO F DIMENSION
API 6D
INSP. & TEST STD
API 6D
PRESSURE RATING
150# / 300# / 600# / 900# / 1500#
LEAKAGE CLASS
VI
END CONNECTION
FLANGE END TO ASME B 16.5 RF 150# / 300# / 600# / 900# / 1500#
