UPVC / CPVC Ball Valve
UPVC / CPVC BALL VALVE

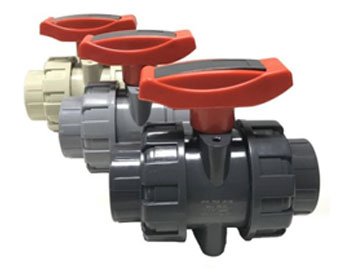

2 WAY TRUE UNION BALL VALVE SOCKET / SCREWED END
Size Range: 15 MM TO 100 MM
DESIGN
HAND LEVER OPERATED 2 WAY TRUE UNION “UPVC” BALL VALVE SOCKET / SCREWED END
BODY
UPVC
BALL
UPVC
STEM
UPVC
SEAT
PTFE
HANDLE
P.P.
PRESSURE RATING
8 KG/CM²
TEMPERATURE
80°C
END CONNECTION
SOCKET / SCREWED
TRUE UNION BALL VALVE SOCKET / SCREWED END
Size Range: 15 MM TO 50 MM
DESIGN
HAND LEVER OPERATED CPVC TRUE UNION TYPE SOCKET / SCREWED BALL VALVE
BODY
CPVC
BALL
CPVC
SEAT
PTFE
‘O’ RING
EPDM
HANDLE
P.P.
PRESSURE RATING
6 KG/CM²
TEMPERATURE
150°C
TEMPERATURE
CLASS VI
END CONNECTION
SOCKET / SCREWEW

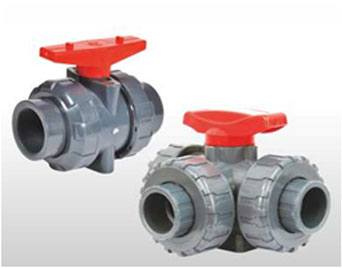

3 WAY TRUE UNION BALL VALVE SOCKET / SCREWED END
Size Range: 15 MM TO 100 MM
DESIGN
HAND LEVER OPERATED 3 WAY TRUE UNION “UPVC” BALL VALVE SOCKET / SCREWED END
BODY
UPVC
BALL
UPVC
STEM
UPVC
SEAT
PTFE
HANDLE
P.P.
PRESSURE RATING
8 KG/CM²
TEMPERATURE
80°C
LEAKAGE
CLASS VI
END CONNECTION
SOCKET / SCREWED
